Brand:
Description:
Extreme pressure, high head discharge – the perfect solution for irrigation systems and long-distance transfer!

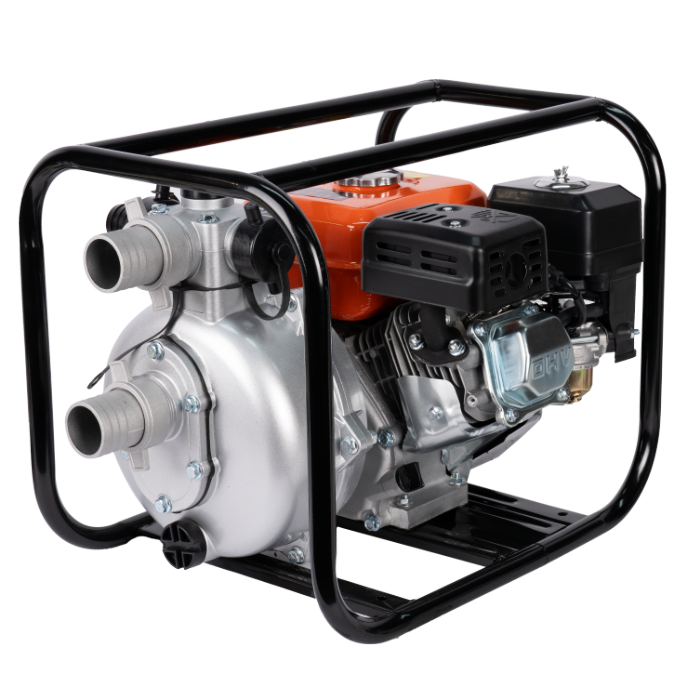

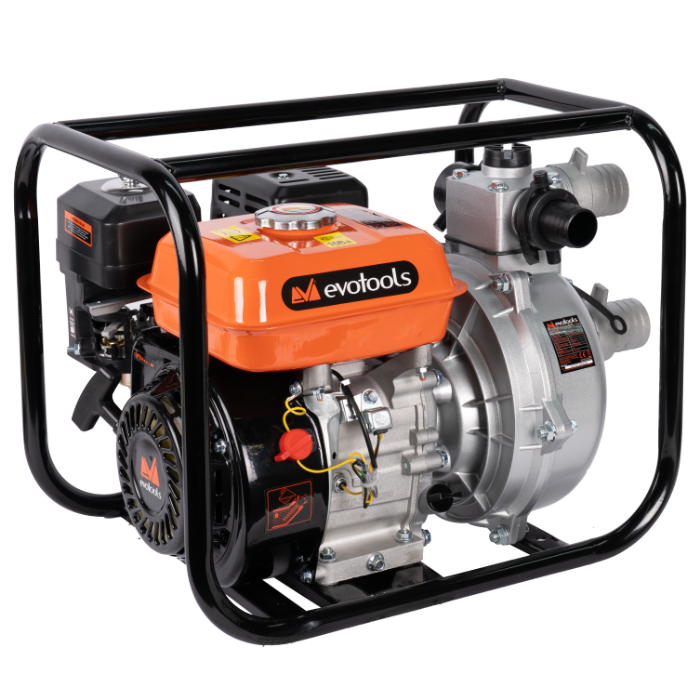

Get ready for a remarkable water pushing force with the new WP212-HP High-Pressure Engine Pump from EvoTools®.
Equipped with a powerful 7.0 hp 4-stroke air-cooled petrol engine, this pump is specially designed for applications requiring high pressure, being capable of lifting water to a maximum height of 80 meters. It is the ideal choice for supplying sprinkler irrigation systems, pushing water up sloping terrain, or transferring liquids over long distances. With an intelligent configuration featuring 3 outlets (one 2" and two 1.5"), its rigid metal frame provides excellent protection and stability during operation, offering an autonomy of up to 4 hours of continuous running.
Technical Specifications:
Engine: 7.0 hp, 1 cylinder / 4-stroke / air-cooled
Displacement: 212 cm³
Starting system: Manual (recoil starter)
Fuel tank volume: 3.6 L
Oil tank capacity: 0.6 L
Autonomy: 4 hours
Inlet diameter: 2 inch (50 mm)
Outlet diameter: 3 outlets: 1 x 2" (50 mm) + 2 x 1.5" (38 mm)
Maximum head: 80 ±2 m
Maximum suction depth: 7 m
Maximum flow rate: 20 ±2 m³/h
Accessories included in the package:
Hose fixing clamps – 5 pcs
Strainer– 1 pc
Pipe gaskets – 5 pcs
Connectors – 2 pcs
Nozzles – 2 pcs
Protection systems:
Integrated sensor for monitoring and protection at low oil level (with oil sensor)
High-pressure pump body resistant to wear and intensive mechanical stress
Documentation:
