Brand:
Description:

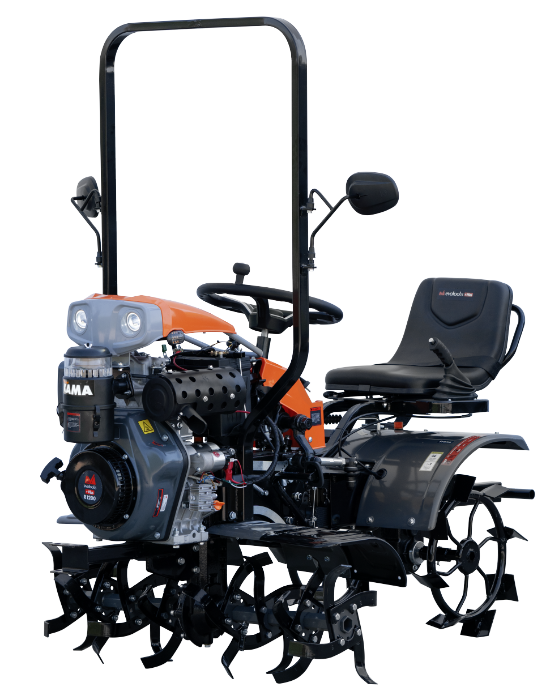

Motocultorul Ride-On 4x4 R1200-1 EvoTools +Plus® is a high-performance agricultural machine, designed to cope with the most demanding tasks on large areas. Equipped with a powerful diesel engine and all-wheel drive (4x4), it offers efficiency, power and comfort in operation.
Advantages:
- Tiller blades packed in box
- Faster final product assembly
- Headlight
- Mirrors
- ROPS (roll-over protection structure)
Technical data:
Powerful 12 hp/3600 rpm (12CP/3600rpm) air-cooled 4-stroke diesel engine
Displacement: 456 cc
Gearbox with 3 forward gears and 1 reverse gear
Tiller with 1 working width: 1050 cm
Working depth: 10-35 cm
Side power take-off (PTO)
Engine oil sump capacity: 1.65L: 4T oil (15W40 in summer and 10W40 in cold periods)
Transmission oil sump capacity: front 3.8L, rear 1.8L (T90 transmission oil)
Fuel tank capacity: 5.5L
Fuel type: diesel
Accessories:
- 2 tillers: 32 blades, 4+0 blade supports
- 2 steel working wheels
- 4 transport wheels: front 4.00-8, rear 5.00-12
Compatible accessories:
- 682368 - Accessory Coupling System for Motocultorul Ride-On 4x4 R1200 EvoTools +Plus®.
- 682369 - Ridger for Motocultorul Ride-On 4x4 R1200 EvoTools +Plus®.
- 682370 - Double Ridger for Motocultorul Ride-On 4x4 R1200 EvoTools +Plus®.
- 681505 - Steel Wheels for Tiller and Motocultor / D[mm]: 550
- 682357 - Coupling sleeve for Tiller and Motocultor EvoTools +Plus® / D[mm]: 23; L[mm]: 200
- 682494 - EvoTools® TTS500 Trailer / T: Motocultorul
- 682840 - EvoTools® TTS500 Trailer / T: Motocultorul with Mesh Side Panels
Compatible accessories to be used together with \"682368 - Accessory Coupling System for Motocultorul Ride-On 4x4 R1200 EvoTools +Plus®.\" :
- 682363 - EvoTools® Hoe for Tiller and Motocultor / H[mm]: 650
- 682361 - EvoTools® Plough for Tiller and Motocultor / H[mm]: 650
- 676126 - Plough for Tiller and Motocultor / C: 673758/679743/679744
- 681037 - Plough for Tiller and Motocultor Type 2.
- 682360 - EvoTools® Potato Plough for Tiller and Motocultor / H[mm]: 650
- 676304 - Potato Plough for Tiller and Motocultor / C: 673758/679743/679744
- 681038 - Potato Plough for Tiller and Motocultor Type 2.
- 682364 - Adjustable EvoTools® Ridger for Tiller and Motocultor / H[mm]: 650
- 676125 - Ridger for Tiller and Motocultor / C: 673758/679743/679744
- 681036 - Ridger for Tiller and Motocultor Type 2.
Characteristics:
Documentation:
