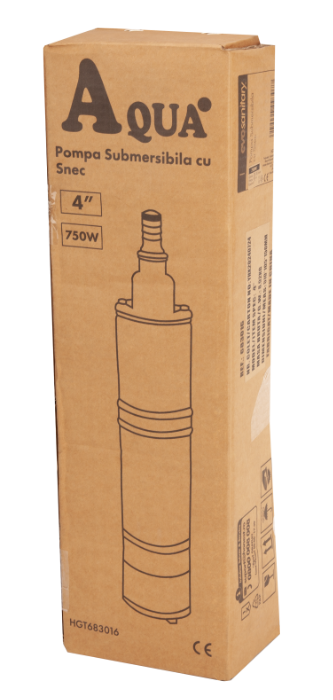

This submersible pump is designed for extracting clean water from drilled or dug wells with medium or great depths. Thanks to the multistage construction and the series-arranged turbine system, this pump generates high pressures and ensures a stable flow rate.
Thanks to the 4” diameter it is compatible with most casings used for drilled wells, ensuring easy handling and installation.
With a power of 750 W (683016) / 1100 W (684294), the submersible pump can lift water to a maximum height of 80 m (683016) / 108 m (684294), ensuring a maximum flow rate of 28.3L/min (683016) / 32.4 L/min (684294).
The stainless steel body offers superior corrosion resistance, longer service life and increased reliability, making the pump ideal for long-term use in outdoor humid conditions.
Technical data:
Rated power: 750 W (683016) / 1100 W (684294)
Maximum immersion depth: 30 m (683016) / 30 m (684294)
Maximum pumping height: 80 m (683016) / 108 m (684294)
Maximum flow rate: 28.3L/min (683016) / 32.4 L/min (684294)
Maximum pressure: 8 bar (683016), 10.8 bar (684294)
Power cable length: 15 m
Maximum pumped liquid temperature: 70 °C
Connection: 1”
Degree of protection: IP54
Do not use the product for extracting hydrocarbons (fuels, oils, solvents, etc.) or other liquids!
