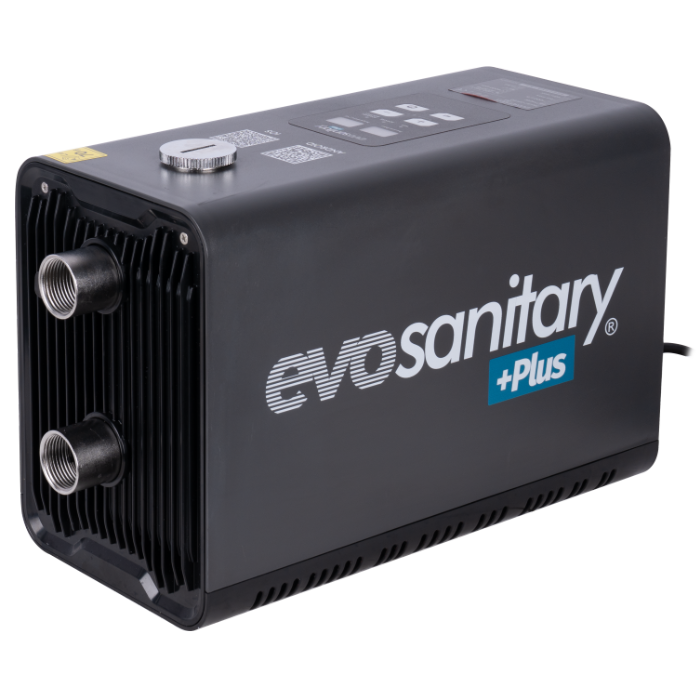

This domestic water pressure booster set is designed for the automatic water supply of homes, households or irrigation systems, using water from wells, boreholes or tanks. Thanks to the integrated self-adapting pressure switch, the pump automatically sets the start and stop pressure according to the installation. If the automatically set start pressure does not meet the installation requirements, it can be adjusted manually. It is equipped with a filling port for easy priming of the pump before operation.
With low energy consumption and a noise level of only 70 dB at maximum speed, the pump is perfect for indoor use. Thanks to Wi-Fi connectivity, you can monitor and control the pump remotely via the “Intelligent Inverter Pump” app available for Android and iOS, while also having access to its operating parameters. In addition, the pump offers protection against voltage fluctuations, freezing, water overheating, lack of water and even possible faults caused by a broken pipe.
With a power of 750 W, the domestic water pressure booster set allows water suction from a depth of up to 6 m and delivery to a maximum head of 48 m, ensuring a maximum flow rate of 116 L/min. The stainless-steel pump casing eliminates the risk of rust and metal particles entering the installation, being much more reliable than pumps with cast-iron housings.
Another important advantage of the pump is the wide range of customizable settings, all available at the touch of a button, to meet your specific needs.
Technical data:
Rated power: 750 W
Maximum suction depth: 6 m
Maximum delivery head: 48 m
Maximum flow rate: 116 L/min
Maximum working pressure: 4.8 bar
Maximum temperature of pumped liquid: max 40°C
Filter: No
Protections: over/under-voltage, lack of water, thermal (with automatic reset)
Connection: 1”
Sensors: pressure calibration, temperature
Soft start-stop: eliminates water hammer together with the 0.3L expansion vessel
Auto-reset
Anti-freeze function below 3°C (the pump starts at a reduced speed until it reaches 16°C and then returns to the initial operating mode; if it is demanded during this time, it operates within parameters)
Frequency inverter (changes the operating speed in order to maintain constant pressure in the installation, regardless of the consumers)
Non-return valve
Protection rating: IPX4
Noise level: 70 dB(A)
Net weight: ~ 8.5 kg
Do not use the product for extracting hydrocarbons (fuels, oils, solvents, etc.) or other liquids.
